Projects

A project is a collection of machines that helps you organize your personal machines and collaborate with others on your application logic.

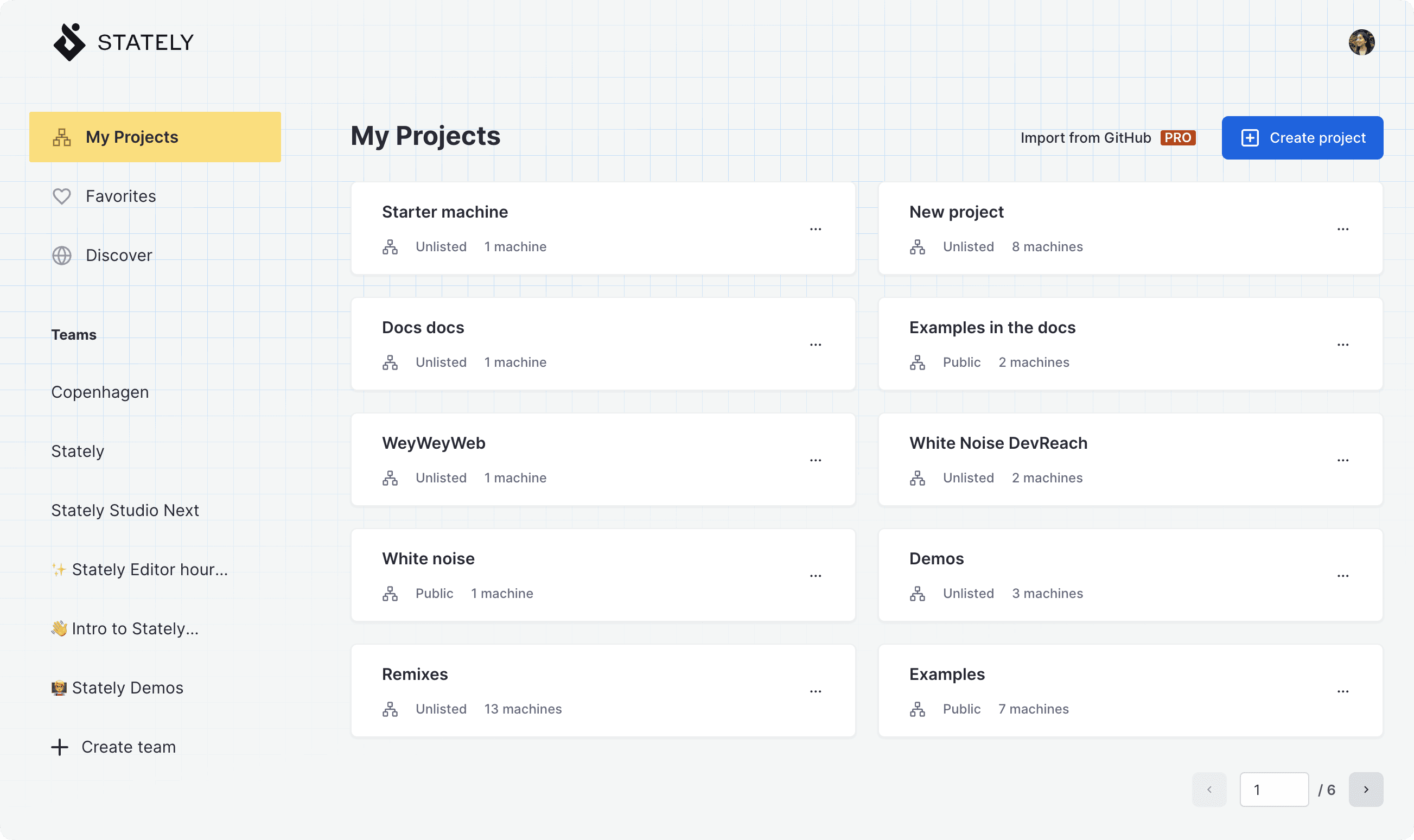

Stately Studio My Projects page showing three pages of projects along with each project’s name, number of machines, and whether the project is public, private, or unlisted.Stately Studio My Projects page showing three pages of projects along with each project’s name, number of machines, and whether the project is public, private, or unlisted.

You can access your projects from My Projects at the left of Stately Studio’s top bar when you’re signed into Stately Studio. My Projects lists your personal projects and is one of the locations where you can create new projects.

When you select a project, the first machine in the project will open in Stately Studio’s editor. The other machines in your project are accessible from the machines list in the left drawer menu.

Stately Studio’s editor showing the Machines list in the left drawer for Stately Studio Tutorials project. The selected machine is called ‘Parent states.’Stately Studio’s editor showing the Machines list in the left drawer for Stately Studio Tutorials project. The selected machine is called ‘Parent states.’

Create a new project​

You can create a new project when you first save a machine or from the Create project button in My Projects. You must be signed in to Stately Studio to access My Projects and shared team projects, or to create new projects.

Create a new project from My Projects​

Open My Projects from the link at the left of Stately Studio’s top bar and use the Create project button.

Create a new project from Stately Studio’s editor​

The Save button will save your machine or prompt you to sign into Stately Studio before saving. Your project will have the same name as your current machine name.

Change a project’s visibility​

A project can be public, unlisted, or private. If the project is a shared team project, only team members with the Owner or Admin roles can change its visibility.

  • Public projects are visible to everyone. They are discoverable on the Discover page and listed on your profile page.
  • Unlisted projects are visible to everyone with the project’s URL but are not findable on the Discover page or listed on your profile page.
  • Private projects are only visible to you and the team that owns the project.

Use the Share button in Stately Studio’s top bar and toggle the project’s visibility between public, unlisted, or private from the dropdown menu in the Share dialog.

Favorite a project​

You can favorite your own projects and other people’s projects. Favoriting a project gives you easy access to these projects in the future, as your Favorites are listed in the left sidebar of Stately Studio’s workspace. You might want to favorite projects you find inspiring or educational so that you can refer back to them later.

You can favorite a project from My Projects, Discover, and team projects.

  • Choose Add to favorites from the triple dot contextual menu alongside the project’s name.
  • Find your Favorites in the left sidebar of Stately Studio’s workspace.

Remove a project from your favorites​

You can remove a project from your favorites from Favorites, My Projects, Discover, and team projects by choosing Remove from favorites from the triple dot contextual menu alongside the project’s name.

Move a project to a different team​

You can move a project to a different team from the Share dialog. You can only move a project between teams if you have the Owner role on both teams.

Move a machine to a different project​

You can move a machine to a different team or to your personal projects from the triple dot contextual menu alongside the machine’s name in the machines list. You can only move a machine between projects if you have the Owner role, Admin role, or Editor role in both projects.
