Version: XState v5

Discover

Are you seeking inspiration for your machine? Or do you want to learn how somebody else models their machines? The Discover page lists all the public machines created in Stately Studio.

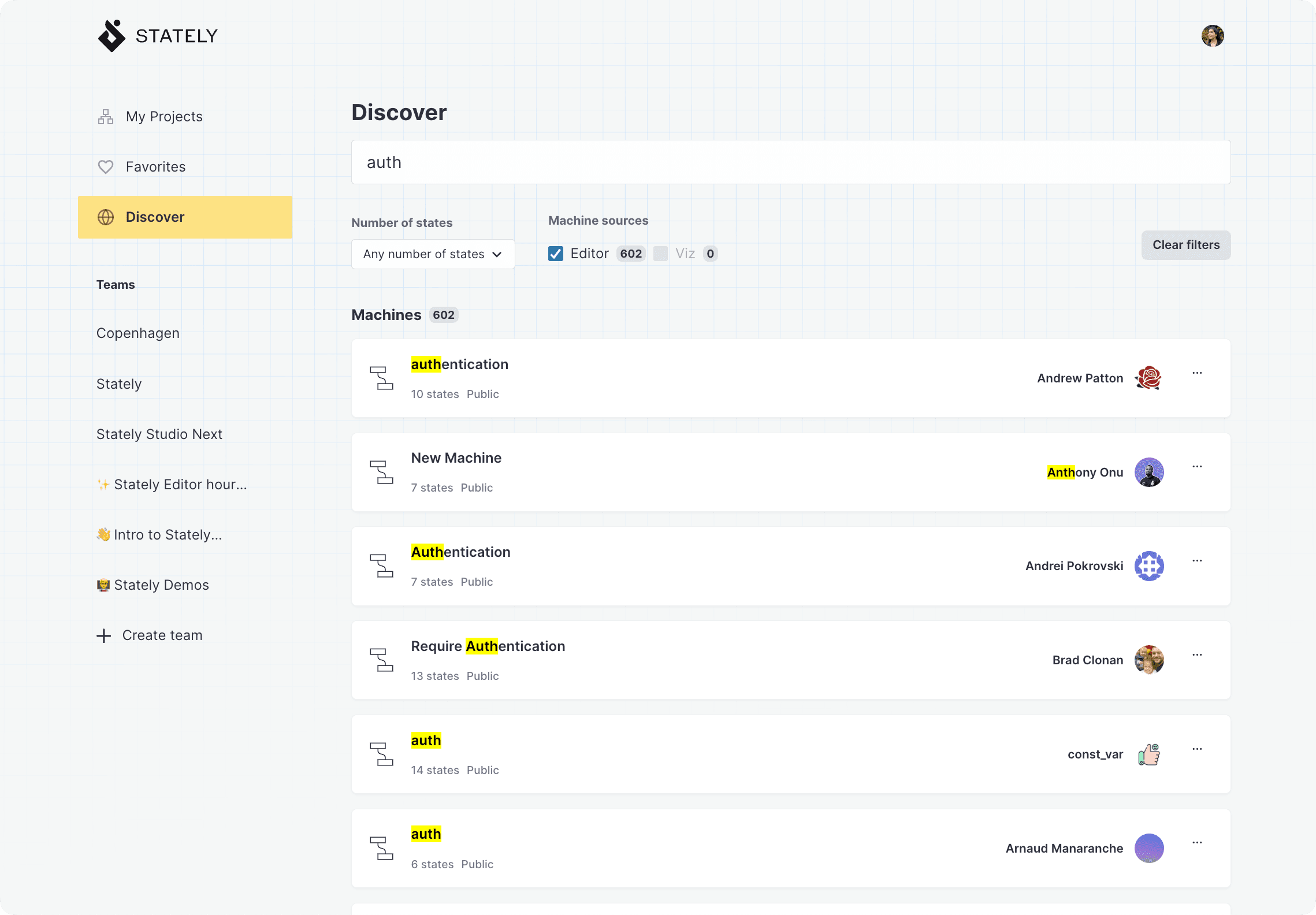

Stately Studio Discover page showing the search results for “auth”, filtered by editor machines under 10 states, showing 173 results.Stately Studio Discover page showing the search results for “auth”, filtered by editor machines under 10 states, showing 173 results.

With the search feature, you can quickly filter your results by the number of states in a machine and whether the machine’s creator used Stately Studio’s editor or our older Viz tool. Each machine listed details its creator, number of states, and a link to view and edit the machine in the editor.

Export and fork public machines​

When viewing somebody else’s machine, you can’t make changes. You can fork the machine to create an editable copy inside your My Projects.

Export a public machine​

Choose Export code from the triple dot contextual menu alongside the machine name in the machines list.

Read more about exporting your machines as code.

Fork a public machine​

Choose Fork to project from the triple dot contextual menu alongside the machine name in the machines list.
