Build reliable AI agents with state machines.

Stately Agent enhances XState with actors that make it easy to harness the power of LLMs.

Guide the agent with a pipeline of distinct steps that can be created visually using Stately Studio.

Agents can decide which action to take from the events available at the current step.

Cycles let agents try steps again, perhaps with a refined input.

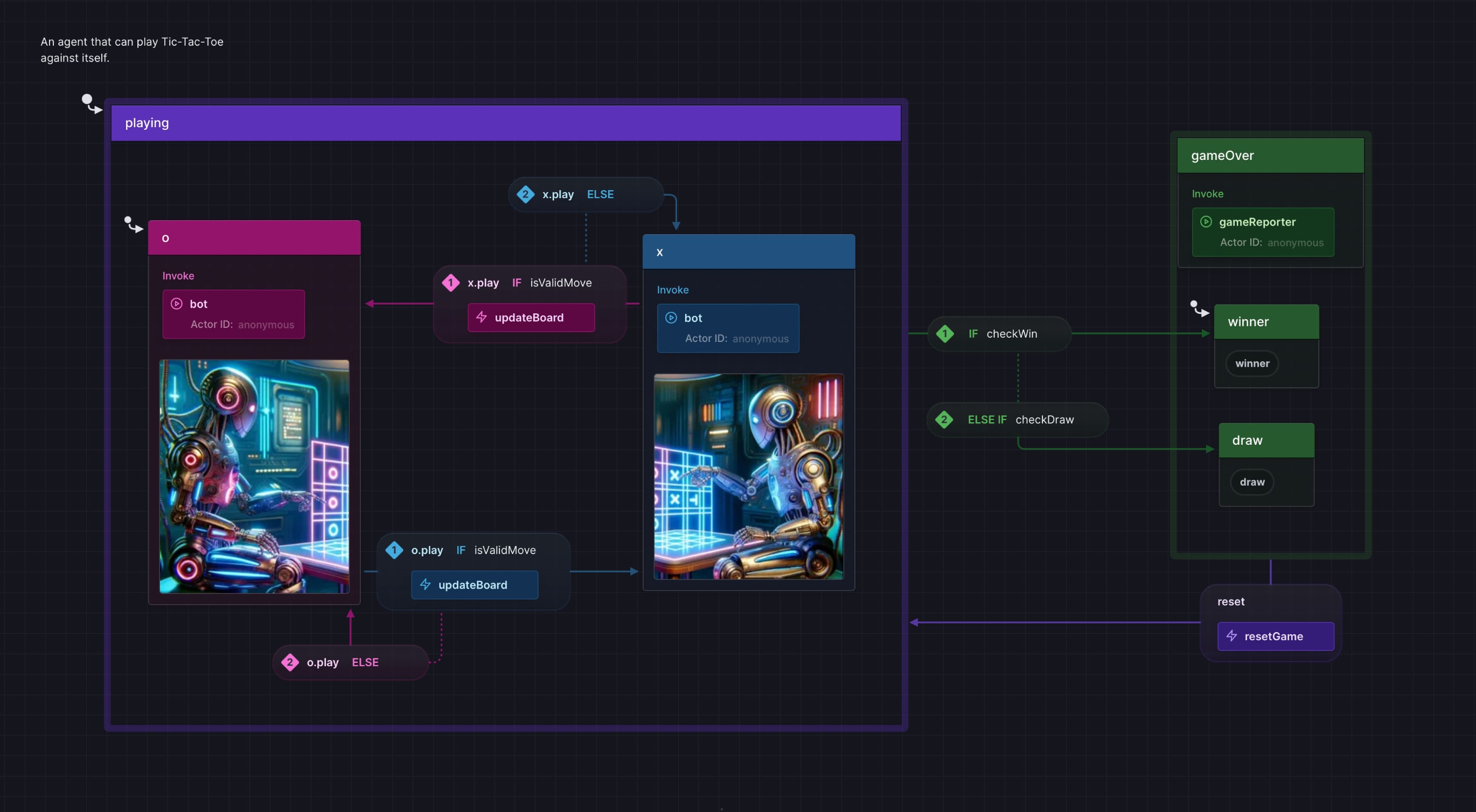

This state machine represents an agent that can play Tic-Tac-Toe against itself. It starts in the "playing" state and has two sub-states: "o" and "x", representing the two players. The agent takes turns playing as "o" and "x" by invoking a bot. Each player's move is validated before updating the game board. The state machine also has a "gameOver" state, which is entered when the game ends. It has two sub-states: "winner" and "draw", representing the different outcomes of the game. After each move, the state machine checks if there is a winner or if the game is a draw. If there is a winner, it transitions to the "winner" sub-state of the "gameOver" state. If the game is a draw, it transitions to the "draw" sub-state of the "gameOver" state. In the "gameOver" state, there is an option to reset the game and go back to the "playing" state. Overall, this state machine allows an agent to play Tic-Tac-Toe against itself and handles the game logic, including validating moves and determining the outcome of the game.

Write familiar JavaScript/TypeScript. Full control.
No lock-in. Open source.

How Stately Agent works.

// Stately Agents are XState actors that are guided by a state machine.
// They can send and receive events, spawn other agents,
// and make decisions based on their current state.
// To set one up we need to give it abilities then define its internal state machine.
import OpenAI from 'openai';
import { fromPromise, setup } from 'xstate';
import { createAgent, createOpenAIAdapter } from '@statelyai/agent';
import { jokeRater } from './agents';
// 1. Create an LLM adapter.
const openai = new OpenAI({
apiKey: process.env.OPENAI_API_KEY,
const llmAdapter = createOpenAIAdapter(openai, {
model: 'gpt-3.5-turbo-1106',
// 2. Set up the abilities the agent will use.
// fromChat() lets the agent perform tasks using a basic prompt template.
const getJokeCompletion = llmAdapter.fromChat(
(topic: string) => `Tell me a joke about ${topic}.`
// fromEvent() lets the agent decide what to do based on the prompt
// from the events connected to the current state.
const decide = llmAdapter.fromEvent(
(lastRating: string) =>
`Choose what to do next, given the previous rating of the joke: ${lastRating}`
// Not all abilities need to involve LLM processing.
const getTopic = fromPromise(async () => {
const topic = await new Promise<string>((res) => {
console.log('Give me a joke topic:');
const listener = (data: Buffer) => {
const result = data.toString().trim();'data', listener);
process.stdin.on('data', listener);
return topic;
const schemas = createSchemas({
// ... Define schemas ...
// 3. Create a state machine that describes the agent's behavior.
const jokerAgentLogic = setup({
types: schemas.types,
actors: {
rateJoke: jokeRater,
// ... Define an XState machine that invokes abilities as needed ...
// 4. Create the agent and start it.
const agent = createAgent(jokerAgentLogic);
// 5. Use the agent.
// Send events to the agent to give it instructions.
// How it handles them will depend on its current state.
// This gives developers more safety and control.
agent.send({ type: 'giveTopic', topic: 'chickens' });
// See what the agent is doing at any time.
agent.subscribe((state) => {
console.log(state.value, state.context);

Why use state machines with LLMs?

Data can be processed in consistent, predictable ways.

Performance can be improved by focusing on one crisply defined subtask at a time.

Work can be distributed with subtasks being handled in different, explicitly designed ways.

The output of each step can be validated, tested, and improved independently.

They can be easier to maintain as requirements change and new AI capabilities are released.

Easily connect multiple models and services, swapping out components as the frontier advances.
